Solar module damage during transit is common, expensive, and often invisible until an installer unwraps a pallet and finds hairline cracks in the glass. Distributors eat the cost. Installers eat the delays. Nobody budgets for it, but it happens anyway.
Pallets, crates, and boxes are the first line of defense between an expensive solar investment and the rough handling of freight transport. Get the packaging wrong, and even a well-manufactured module can arrive damaged.
This guide covers what solar panel packaging actually includes, how it's built to prevent damage, and what to look for when choosing a pallet and crate partner.
Key Takeaways
- Solar panels are typically packed 26-36 per pallet, stacked vertically to limit stress on individual modules
- Poor packaging drives financial losses through breakage, disposal fees, and rework
- Custom, heat-treated pallets and crates outperform generic packaging for fragile, glass-faced modules
- Specialist pallet and crate partners cut damage, waste, and total shipping costs over the life of a program
What Is Solar Panel Packaging?
Solar panel packaging is the full system that moves modules safely from the factory floor to a job site. It includes:
- A pallet base: the structural foundation carrying box weight during stacking and transport
- A reinforced cardboard box or crate: sized to the pallet footprint
- Separators, corner supports, and cushioning: placed between panels
- Strapping and stretch film: holding the load together in transit
The pallet base matters more than most people assume. It has to support the weight of an entire stack without flexing, since deflection under load is one of the leading causes of hidden microcracks in the glass and cells above.
What Is the Solar Panel Box Called?
Most suppliers call it a reinforced corrugated carton or crate, built to match the pallet footprint exactly. According to WINAICO's packaging guidance, a typical unit is a cardboard box sized to that footprint and holds 26–36 panels, depending on module size and box design.
Key Components That Need Protecting

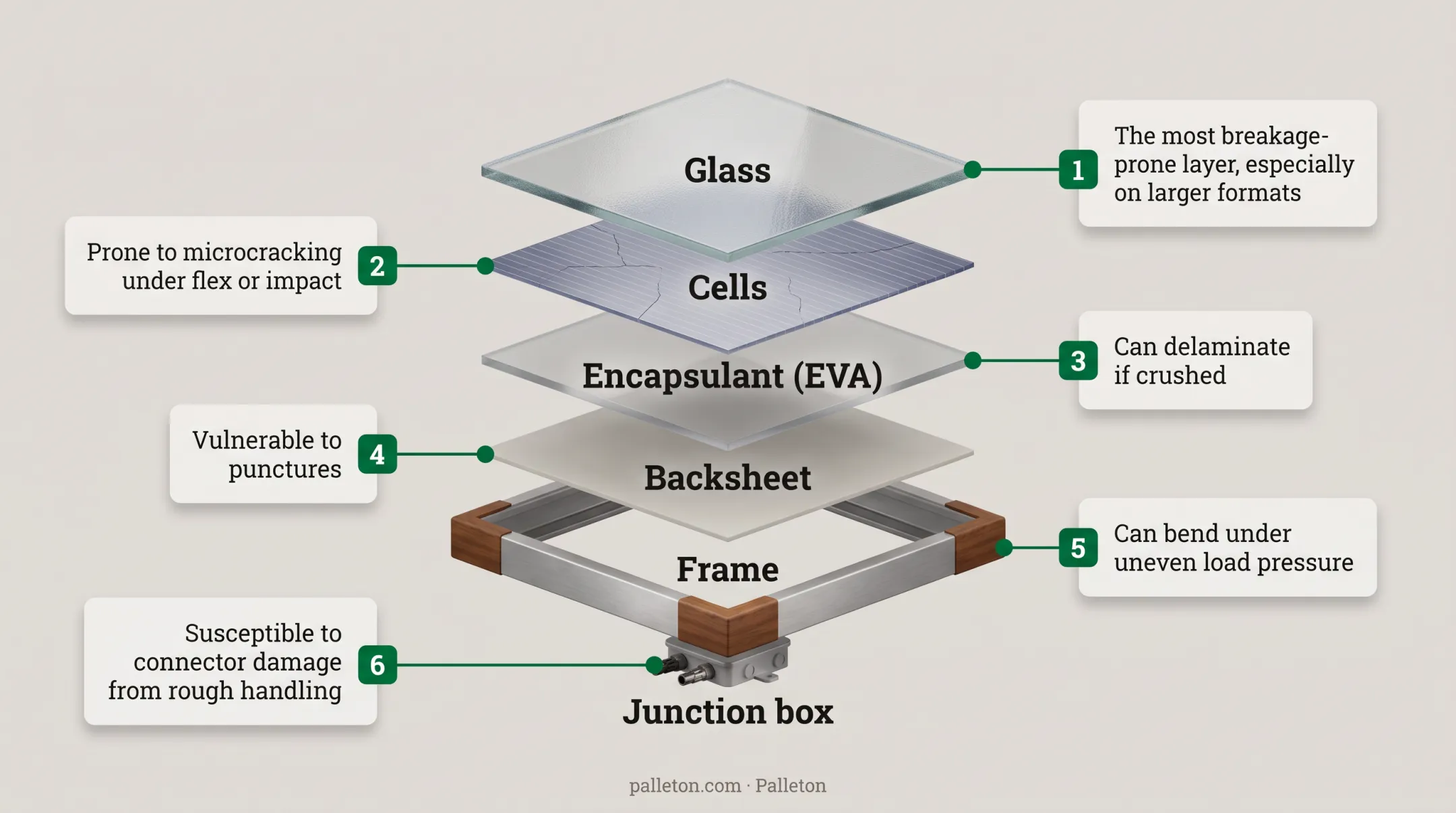

A solar module is a stack of vulnerable layers, not one solid object. Trina Solar's documentation identifies six core components, each reacting differently to transit stress:
- Cells: prone to microcracking under flex or impact
- Glass: the most breakage-prone layer, especially on larger formats
- Encapsulant (EVA): can delaminate if crushed
- Backsheet: vulnerable to punctures
- Frame: can bend under uneven load pressure
- Junction box: susceptible to connector damage from rough handling
Why Proper Packaging Design Matters
Packaging design isn't cosmetic. It's engineering, and the details determine whether a module arrives intact.

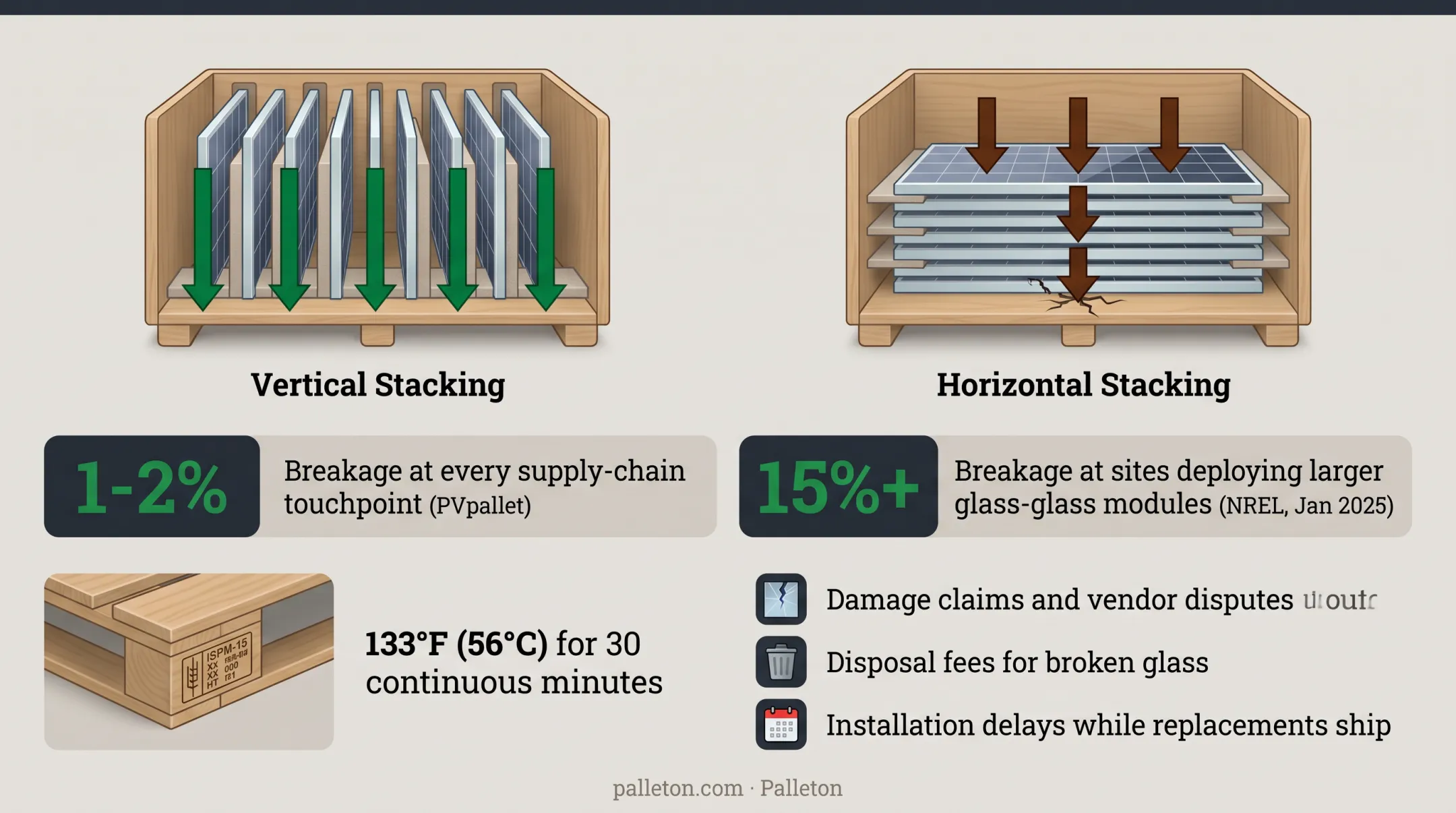

Vertical stacking beats horizontal stacking. When panels stand vertically in a box, each one bears only its own weight. Lay them flat and stack them, and the bottom panels absorb the load of everything above. That load path is a direct route to microcracks that don't show up until the module is installed and underperforming.
Box height also matters. A box built slightly taller than the panel itself creates a buffer that prevents crushing when pallets get stacked two or three high in a trailer. Corner supports reinforce this further, keeping pressure off the glass edges where breakage typically starts.
Damage adds up fast. PVpallet's CEO reported finding 1-2% breakage at every supply-chain touchpoint, with annual losses reaching several million dollars industry-wide.
Separately, NREL's January 2025 research found breakage rates exceeding 15% at some sites deploying larger glass-glass modules. As panels get bigger, packaging has to work harder to protect them.
Export shipments have extra requirements. International shipments need ISPM-15 heat-treated wood pallets. This is a phytosanitary standard enforced by customs, not a preference. Wood must reach a core temperature of at least 133°F (56°C) for 30 continuous minutes, and treated units carry a stamped mark showing the treatment code, country, and facility ID.
Generic, off-the-shelf packaging wasn't designed for solar modules. Custom-built crates sized to a module's exact dimensions distribute pressure correctly and eliminate the wasted space where panels shift during transit.
Skip this step, and the downstream costs pile up:
- Damage claims and vendor disputes
- Disposal fees for broken glass
- Installation delays while replacements ship
Choosing the Right Pallet and Crate Partner
Solar shippers juggling multiple vendors for pallets, crates, and tracking end up managing complexity they don't need. Consolidating with one manufacturer simplifies purchasing, quality control, and accountability when something goes wrong.

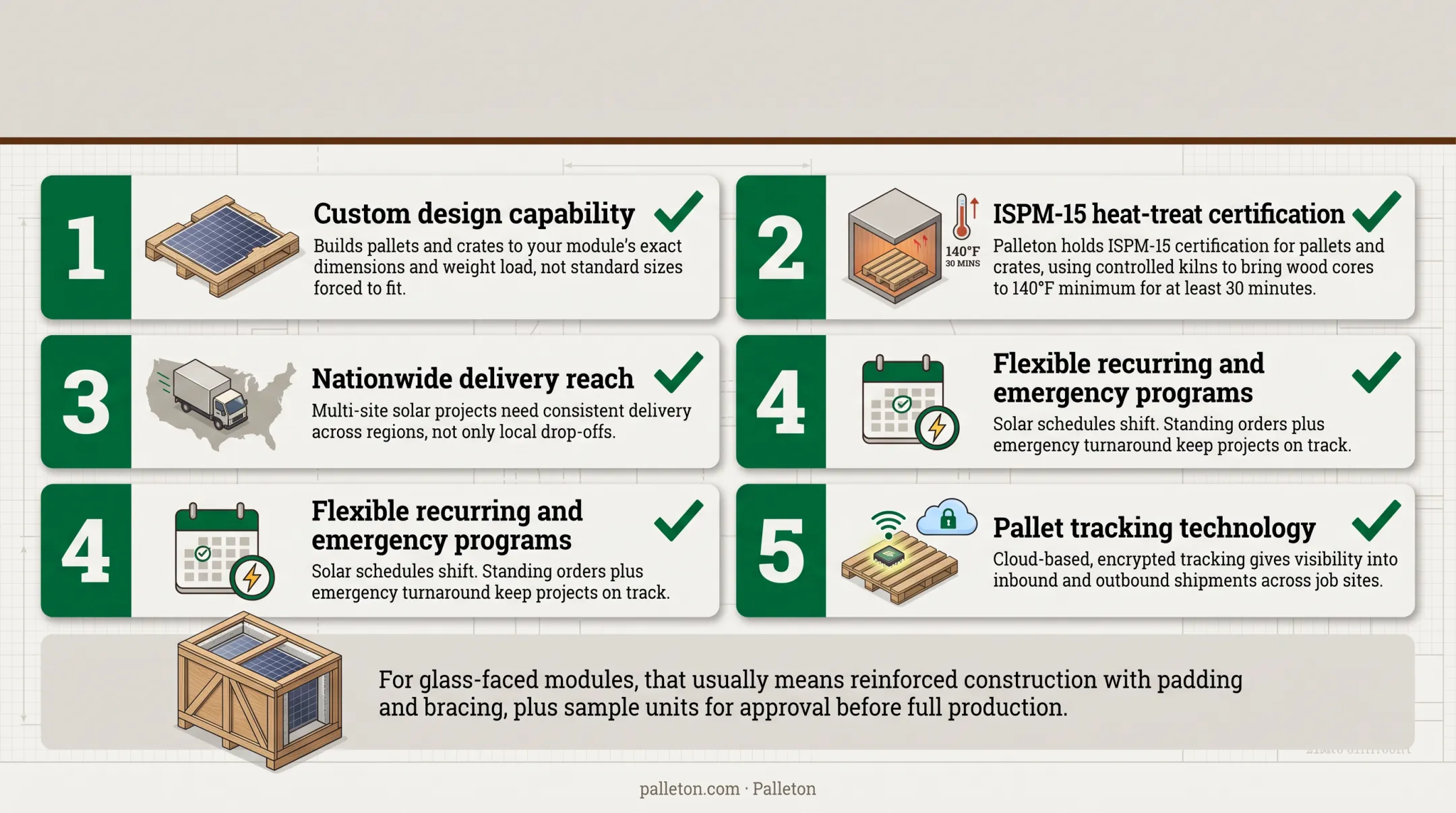

Here's what to look for in a packaging partner:
- Custom design capability: Builds pallets and crates to your module's exact dimensions and weight load, not standard sizes forced to fit.
- ISPM-15 heat-treat certification: Non-negotiable for export. Palleton holds ISPM-15 certification for pallets and crates, using controlled kilns to bring wood cores to 140°F minimum for at least 30 minutes.
- Nationwide delivery reach: Multi-site solar projects need consistent delivery across regions, not only local drop-offs.
- Flexible recurring and emergency programs: Solar schedules shift. Standing orders plus emergency turnaround keep projects on track.
- Pallet tracking technology: Cloud-based, encrypted tracking gives visibility into inbound and outbound shipments across job sites.
Palleton's custom process starts with the module's exact dimensions, weight, and handling requirements. The team then engineers a pallet or crate that protects the load without overbuilding or overpaying.
For glass-faced modules, that usually means reinforced construction with padding and bracing, plus sample units for approval before full production.
Reducing Damage, Waste, and Costs
Better packaging shows up in the numbers when companies make the switch.

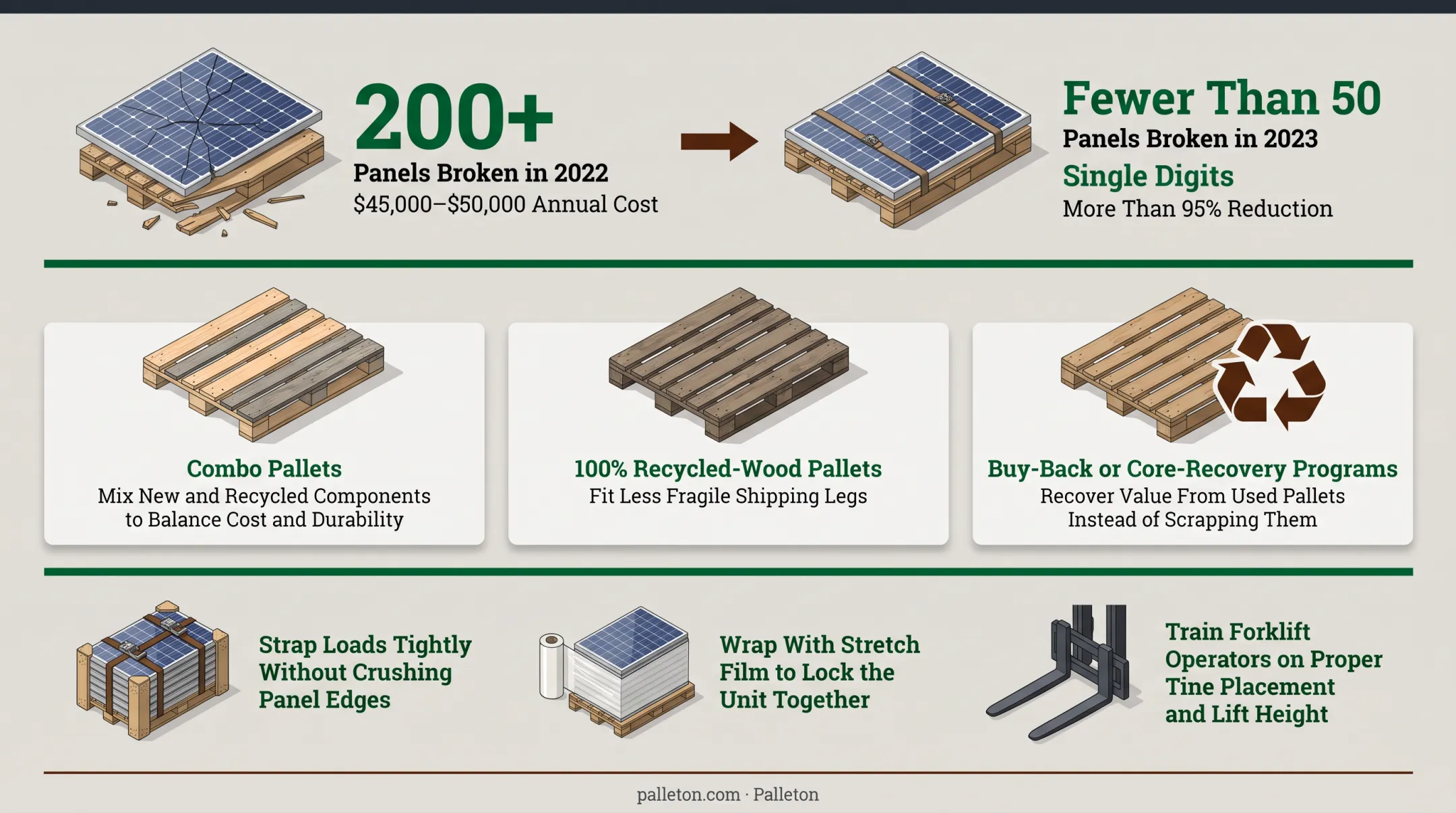

One documented example: Seal Solar broke more than 200 panels in 2022, costing an estimated $45,000–$50,000 annually.
After adopting reinforced pallets, job-level pre-kitting, and assigned pallet accountability in 2023, breakage dropped to fewer than 50 panels that year, then to single digits afterward—a reported reduction of more than 95%.
Recycled and buy-back programs cut costs further. Instead of buying new lumber for every order, distributors can use:
- Combo pallets: mix new and recycled components to balance cost and durability
- 100% recycled-wood pallets: fit less fragile shipping legs
- Buy-back or core-recovery programs: recover value from used pallets instead of scrapping them
Palleton offers all three, plus financial incentives for returned pallets, which lowers total packaging spend over a project's lifespan.
Simple handling practices prevent most avoidable damage:
- Strap loads tightly enough to prevent shifting, but not so tight that pressure crushes panel edges
- Wrap with stretch film to lock the unit together during transport
- Train forklift operators on proper tine placement and lift height for palletized glass products
Sustainability Considerations in Solar Packaging
Solar companies are under growing pressure to cut single-use wood and plastic waste, especially as project volumes scale. A single utility installation can generate hundreds of pallets destined for a landfill if there's no reuse plan.

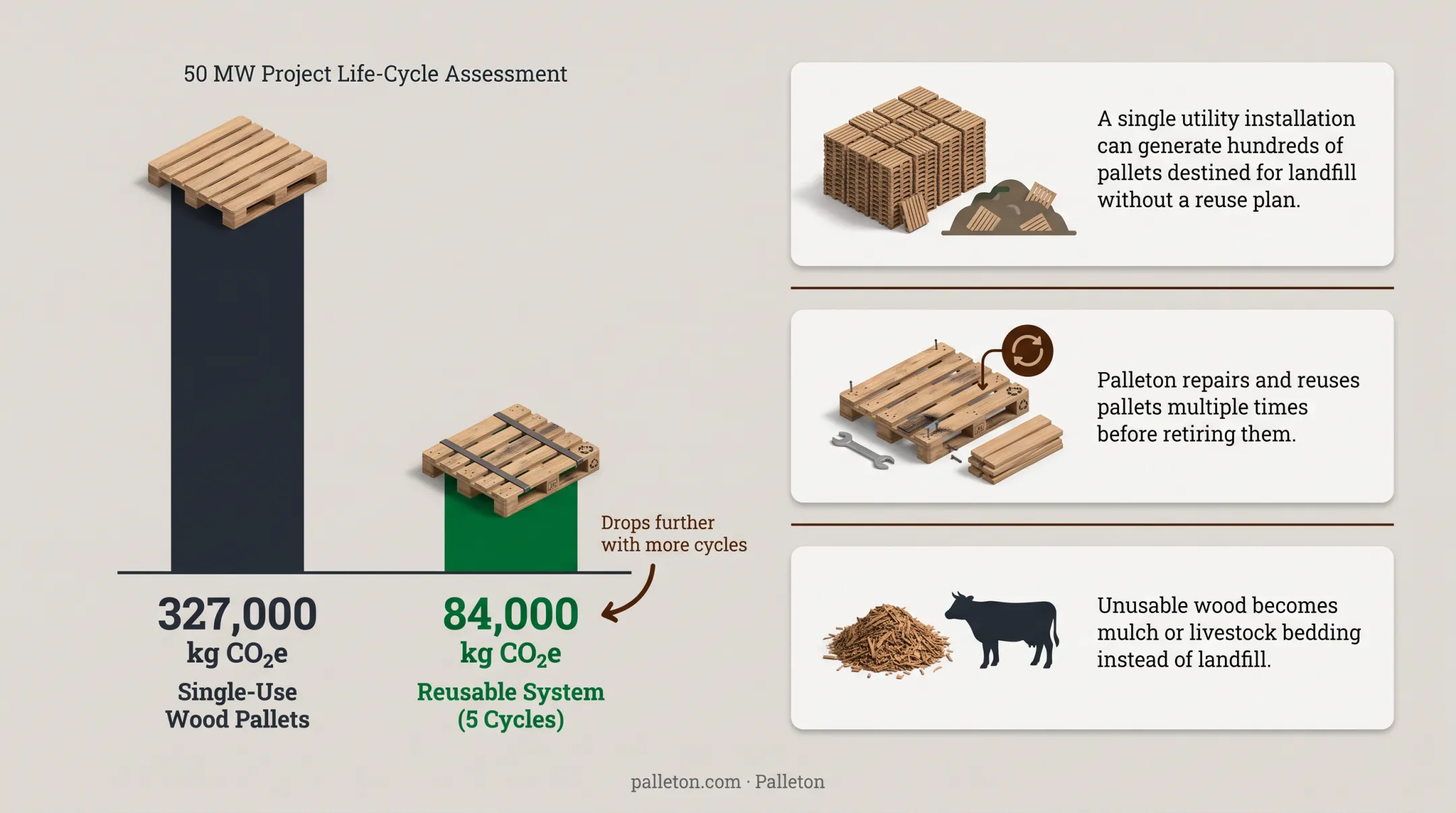

Reusable and buy-back programs cut both environmental impact and cost. A third-party life-cycle assessment of a 50 MW project found:
- Single-use wood pallets: roughly 327,000 kg CO2e
- Reusable system (five cycles): about 84,000 kg CO2e, dropping further with more cycles
Wood pallets aren't inherently wasteful when built for reuse. Palleton's recycling program repairs and reuses pallets multiple times before retiring them, and unusable wood becomes mulch or livestock bedding instead of landfill. With buy-back incentives, solar manufacturers and installers can cut waste without sacrificing the protection fragile modules need.
Frequently Asked Questions
How many solar panels are packed in one pallet?
Most solar panel pallets hold between 26 and 36 panels, stacked vertically. The exact count depends on panel size and the specific box design used by the manufacturer.
What is the solar panel box called?
It's typically called a reinforced corrugated carton or crate, built to match the pallet's footprint. Some manufacturers also refer to it as a protective palletized packaging system.
What are the components of a solar module?
A solar module consists of cells, glass, encapsulant (EVA), backsheet, frame, and junction box. Each layer responds differently to transit stress, which is why packaging needs to protect the whole assembly, not just the frame.
How can I reduce solar panel damage during shipping?
Use vertical stacking, rigid custom-built boxes sized to your module dimensions, and proper strapping and film wrapping. Careful forklift handling during loading and unloading prevents much of the avoidable damage.
Do solar panel pallets need to be heat treated?
Yes, for international or export shipments. ISPM-15 requires wood packaging to reach a core temperature of at least 56°C (133°F) for 30 minutes and carry an approved treatment mark.
Is it better to buy custom pallets or standard pallets for solar shipping?
Custom pallets match your module's exact dimensions and weight load, which reduces shifting and breakage risk during transit. Standard pallets can work for lower-risk stages of a shipment, but custom builds offer better protection for high-value glass modules.
